20ft double-wing model
20ft Expandable Container House
The standard 20ft model balances a 37 m² listed footprint with a two-unit-per-40HQ loading reference. Review the verified base schedule before defining the interior package.
Standard-width 20ft model
37 m² from a 5.9 m-long folded unit
This model keeps the 5,900 mm transport length of the 20ft range, folds to 2,200 mm wide and opens to a 6,300 mm overall width. Its listed 37 m² footprint sits between the narrower 700 mm-folded model and the longer 30ft model.
The standard schedule lists one living room, reference occupancy for 2–4 people and two folded units per 40 ft high-cube container. Use these figures as the selection baseline; furniture, kitchen and bathroom fit-out must be defined in the quotation.
Selection baseline
Dimensions, occupancy and transport form
Compare the 6,300 mm expanded width with the 2,200 mm folded width before coordinating the layout, access route and unloading plan.
| Parameter | Standard 20ft configuration |
|---|---|
| Expanded dimensions | 5,900 × 6,300 × 2,480 mm |
| Internal dimensions | 5,460 × 6,140 × 2,240 mm |
| Folded dimensions | 5,900 × 2,200 × 2,480 mm |
| Footprint | 37 m² |

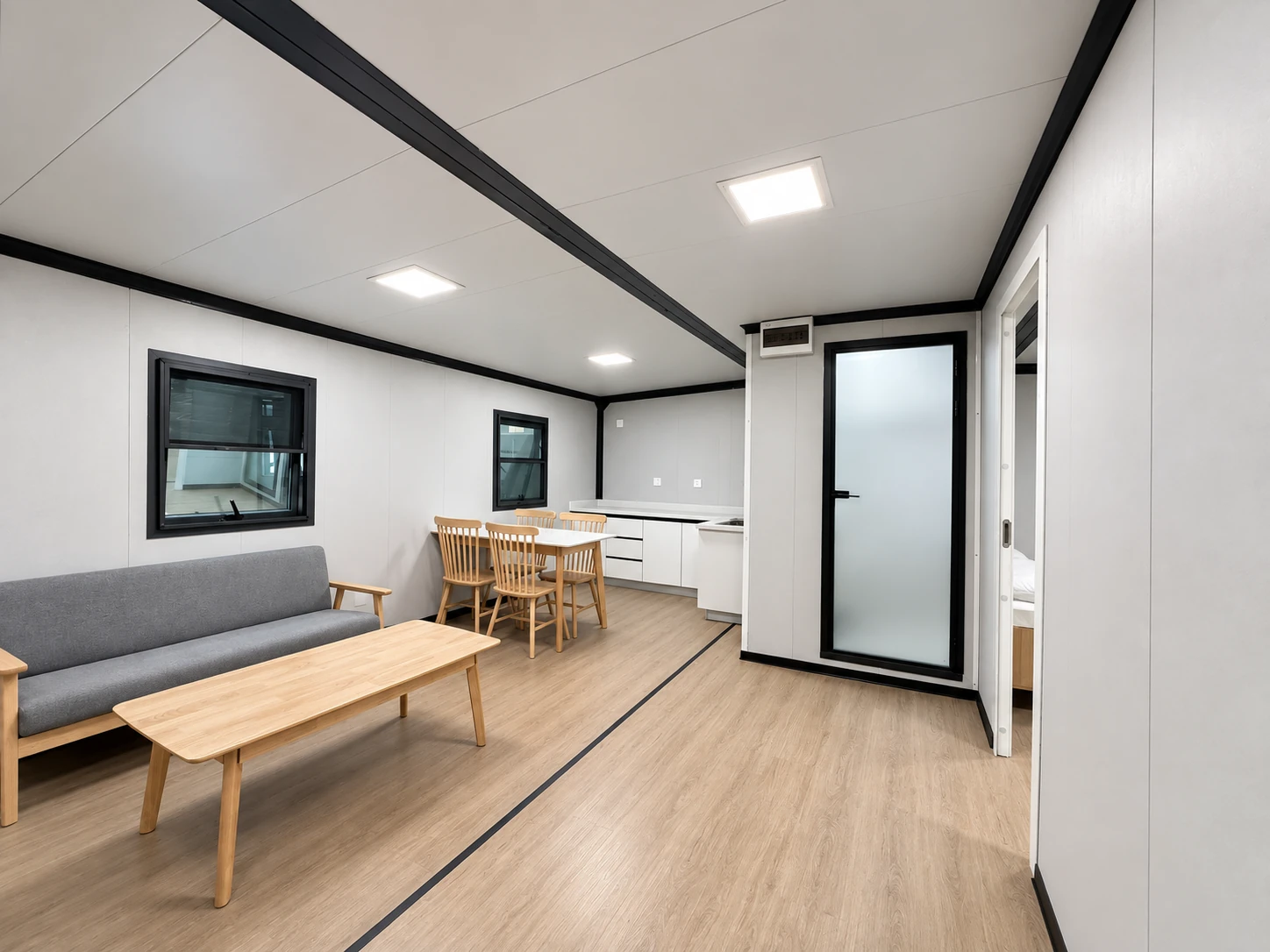

| Standard layout | One living room |
| Reference occupancy | 2–4 people |
| Listed electrical power | 12 kW |
| Net unit weight | 3.12 t |
20ft frame schedule
Main body and folding-wing members
The schedule separates the fixed main frame from the two folding wings so section sizes can be checked against the quoted configuration.
| Parameter | Standard 20ft configuration |
|---|---|
| Roof side beams | 80 × 100 × 2.5 mm galvanized hollow sections |
| Roof end beams | 2.5 mm galvanized formed sections |
| Roof longitudinal secondary members | 30 × 30 × 1.3 mm galvanized hollow sections |
| Roof transverse secondary members | 40 × 60 × 1.5 mm galvanized hollow sections |
| Floor side beams | 80 × 100 × 2.5 mm galvanized hollow sections |
| Floor end beams | 2.5 mm galvanized formed sections |
| Floor longitudinal and transverse members | 40 × 80 × 1.5 mm galvanized hollow sections |
| Lifting fittings | 6 mm galvanized fittings, 210 × 150 × 160 mm |
| Columns | 2.5 mm galvanized formed sections |
| Parameter | Standard 20ft configuration |
|---|---|
| Roof frame | 40 × 80 × 1.5 mm P-profile and 40 × 80 × 1.5 mm galvanized hollow sections |
| Floor frame | 60 × 80 × 2.0 mm galvanized hollow sections |
| Folding hinges | 130 mm galvanized hinges |
| Frame finish | Electrostatic powder coating with an anti-corrosion layer |
Envelope build-up
Different assemblies for the centre and wings
The central floor and wing floors use different boards; roof and wall panel build-ups are listed separately for scope checking.
| Parameter | Standard 20ft configuration |
|---|---|
| Main external roof | 950-profile, 50 mm EPS steel sandwich panel with 0.3 mm steel faces; 0.45 mm corrugated outer sheet |
| Wing roof panels | 950-profile, 65 mm EPS steel sandwich panel with 0.3 mm steel faces; 0.45 mm corrugated outer sheet |
| Internal ceiling | 950-profile, 50 mm EPS steel sandwich panel with 0.3 mm steel faces |
| Side, front and rear walls | 950-profile, 65 mm EPS steel sandwich panels with 0.3 mm steel faces |
| Interior partitions | 950-profile, 50 mm EPS steel sandwich panels with 0.3 mm steel faces |
| Central floor | 18 mm cement-fibre board |
| Wing floors | 18 mm bamboo plywood |
Openings and base services
Four windows, one entrance and 12 kW listed power
| Parameter | Standard 20ft configuration |
|---|---|
| Windows | Four 920 × 920 mm double-glazed uPVC sliding windows |
| Entrance door | One 840 × 2,035 mm steel fire door |
| Parameter | Standard 20ft configuration |
|---|---|
| Base supply | 220 V, 50 Hz |
| Protection | One 32 A residual-current device |
| Incoming cable | 6 mm² conductor cross-section |
| Air-conditioning socket circuit | 4 mm² conductor cross-section |
| General socket circuits | 2.5 mm² conductor cross-section |
| Lighting circuits | 1.5 mm² conductor cross-section |
| Lighting | BULL flat panel light and large ceiling light |
| Sockets and switches | Three-pin and five-hole sockets; double and single switches |
Specify destination-specific sockets, switches and circuits; confirm applicable standards and certification scope.

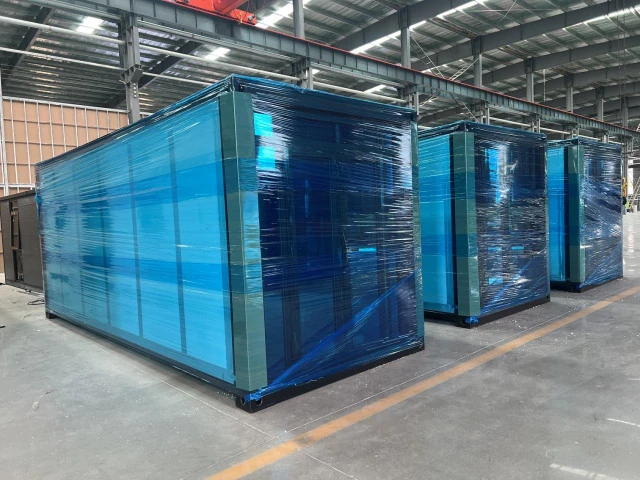

20ft delivery planning
Two folded units per 40 ft high-cube container
| Parameter | Standard 20ft configuration |
|---|---|
| Included accessories | Ceiling trim, skirting, corner trim, waterproof tape, lifting straps, Baiyun structural sealant and a sealant gun |
| Reference container loading | Two folded units per 40 ft high-cube container |
| Quoted commercial scope | Packaging and container loading included; taxes and freight excluded |
Container quantity and commercial terms must be reconfirmed for the selected configuration and destination in the current quotation.
20ft model questions
Confirm the model before the fit-out
How does this model differ from the 700 mm-folded 20ft model?
This standard 20ft model folds to 2,200 mm wide and has a listed 37 m² footprint. The 700 mm-folded model has a 27.5 m² footprint and a different loading reference. They should be quoted as separate models.
What is the standard layout baseline?
The verified schedule lists one living room and reference occupancy for 2–4 people. Any bedroom, kitchen, bathroom, furniture or appliance package must be shown in the selected drawing and quotation.
What loading reference should be used for early planning?
The schedule lists two folded units per 40 ft high-cube container. Reconfirm the quantity, packing method and freight arrangement for the selected configuration and destination.
20ft project enquiry
Confirm quantity, fit-out and destination
Include the required unit count, interior scope, electrical standard and destination port so the 20ft configuration and loading plan can be checked together.
