A 38.4 m² two-level capsule configuration for two to four people, with a lower living and bathroom zone, spiral stair, upper sleeping area and insulated steel-frame enclosure.
S4 accommodation
A two-level 38.4 m² layout
The S4 arranges a living area and bathroom on the lower level, with a spiral staircase leading to the upper sleeping area. The base schedule is intended for two to four people.

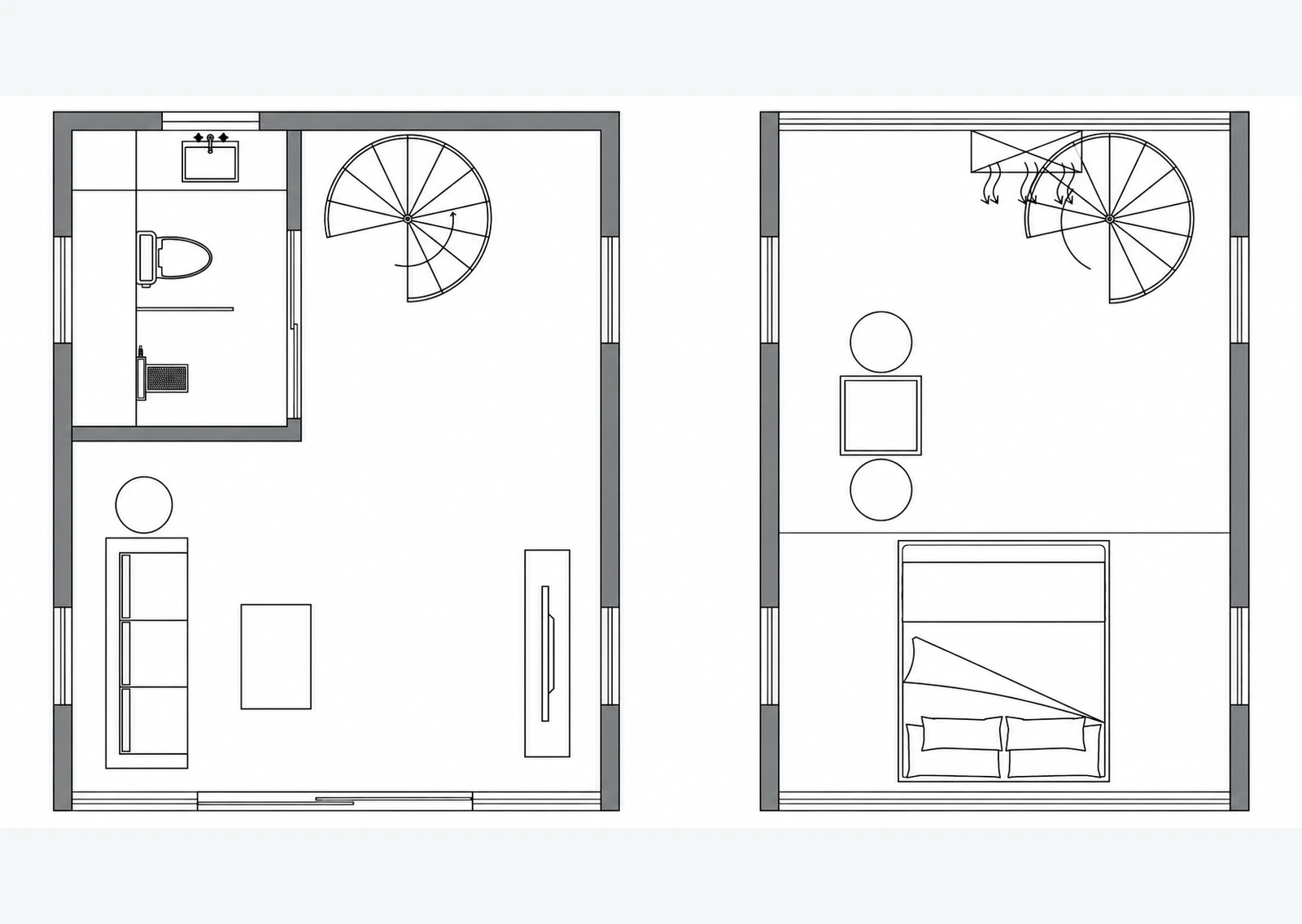

Living, bathroom and sleeping zones across two levels
The illustrated arrangement places the living zone and bathroom on the lower level. A spiral staircase connects to the upper sleeping area, allowing the compact external form to separate daytime and sleeping functions.
- Occupancy: two to four people in the base schedule.
- Enclosure: galvanised steel-frame construction, insulated exterior panels, Low-E insulating glazing and laminated-glass openable windows.
- Guest facilities: bathroom fittings, two split-system air conditioners, lighting, curtains and room controls.
Dimensions and configuration can be customised to your requirements. Final specifications and included items are confirmed in the agreed proposal and quotation.
Base specifications
S4 dimensions and capacity
The dimensions and specifications below describe the base two-level configuration. Changes to layout, finishes and equipment may affect dimensions, weight and price.
| Parameter | Base configuration |
|---|---|
| Model | S4 Space Capsule House |
| Lower-level dimensions (L × W × H) | 5,550 × 4,050 × 2,550 mm (5.55 × 4.05 × 2.55 m) |
| Upper-level dimensions (L × W × H) | 5,550 × 2,900 × 2,550 mm (5.55 × 2.9 × 2.55 m) |
| Nominal floor area | 38.4 m² |
| Occupancy | 2–4 people |
| Electrical power | 10 kW |
| Approximate total weight | 8 t (8,000 kg) |
The listed level dimensions are not clear internal dimensions. Confirm the final shipping dimensions, equipment load and unit weight for the agreed configuration before arranging transport or site connections.
Structure and envelope
Frame, glazing and exterior openings
A galvanised steel frame supports the insulated enclosure. Aluminium-alloy exterior panels, curtain-wall glazing and laminated-glass openable windows define the S4 base configuration.
| Component | Base configuration |
|---|---|
| Main frame | Galvanised steel-frame structure |
| Exterior panels | Aluminium-alloy panels |
| Exterior coating | Fluorocarbon paint finish |
| Insulation | Polyurethane insulation layer |
| Curtain-wall glazing | Low-E tempered insulating glazing, 6 + 15A + 6 configuration |
| Openable windows | Laminated tempered glazing, 6 + 1.52 + 6 configuration |
| Entrance door | Custom entrance door |
| Entrance lock | Outdoor waterproof smart door lock for hospitality use |
| Equipment compartment | Compartment for air-conditioning and water-heating equipment |
| Equipment-compartment door | Custom aluminium-alloy door |
| Perimeter lighting | Surrounding ambient light strip |
| Top lighting | Surrounding ambient light strip |
Confirm required finishes, opening arrangements and project-specific structural requirements with your enquiry. Final materials and details follow the agreed specification.
Interior finishes
Two-level interior and spiral stair
Panel finishes, flooring, lighting, curtains and the internal spiral stair form the base interior package. Discuss your preferred finishes and room arrangement before confirming the order.
| Component | Base configuration |
|---|---|
| Bedroom ceiling | Aluminium-alloy ceiling panels |
| Internal staircase | Spiral staircase |
| Bedroom wall panels | Carbon-crystal decorative panels |
| Bedroom flooring | 6 mm SPC click-lock flooring |
| Bedroom ambient lighting | Surrounding ambient light strips |
| Bedroom general lighting | Downlights |
| Curtain track | Motorised curtain track |
| Bathroom ceiling | Bamboo-wood fibre panels |
| Bathroom wall panels | Carbon-crystal decorative panels |
| Bathroom flooring | Slip-resistant ceramic tiles |
| Bathroom privacy door | One-way frosted tempered-glass door |
Bathroom equipment
Sanitary fittings and hot water
The base bathroom package includes sanitary fixtures, water heating, lighting and ventilation. Equipment specifications and included fittings are confirmed with the selected layout.
| Component | Base configuration |
|---|---|
| Hot-water equipment and shower | Electric water heater and shower fittings |
| Vanity and basin | Custom sintered-stone washbasin and vanity, mirror, cabinet and floor drain |
| Toilet | Toilet fixture |
| Lighting and ventilation | Bathroom lighting and ventilation |
| Accessories | Towel rack |
Confirm water-heater capacity, fixture selections and water-supply and drainage requirements in the agreed specification.
Electrical and services
Coordinate equipment with your destination
Switches, sockets and wiring can be configured to Australian, US, European or other destination-market requirements. Specify your destination, required electrical standards and power-supply details when enquiring.
| Component | Base configuration |
|---|---|
| Base wiring | 1.5 / 2.5 / 4 / 10 mm² electrical cables and Category 6 network cable; final cable specification follows destination and equipment requirements |
| Cable conduit | Insulating PVC conduit |
| Water supply and drainage | Pressure-resistant water-supply and drainage pipework |
| Air conditioning | Two 1.5 HP-class split-system heating and cooling air conditioners in the base schedule |
| Sockets | Destination-specific sockets; three-hole and five-hole formats are base examples, not the only choices |
| Switches | Switch panels configured for the required destination standard |
The 1.5 HP class describes the base air-conditioner size, not an electrical-input or cooling-capacity value. Final component specifications and included items are confirmed in the agreed proposal and quotation.
Room controls
Lighting, curtains and guest-room power
The base room-control functions support guest-room lighting, curtains and power management. Confirm the selected control functions and equipment with your fit-out package.
| Function | Base configuration |
|---|---|
| Key-card power control | Insert card to enable power; remove card to disconnect power |
| Scene controls | Multi-scene function panel |
| Lighting controls | Intelligent lighting control |
| Curtain controls | Intelligent curtain control |
| Voice controls | Intelligent voice-control system |
Configuration choices
Tailor the S4 to your project
The base configuration is a starting point for the enquiry. Tell us which dimensions, layout, finishes or equipment need to change.
- Dimensions and layout: discuss required external dimensions, lower- and upper-level arrangement and intended occupancy.
- Finishes and fit-out: specify exterior and interior finish preferences, bathroom fittings and room-control requirements.
- Electrical components: request switches, sockets and wiring suited to your destination, including Australian, US or European requirements.
- Included items: confirm furniture, appliances and accessories explicitly in the quotation. Items shown in a visualisation are not automatically included.
Customisation may affect dimensions, weight, equipment selection and price. Final specifications and included items follow the agreed proposal and quotation.
Documentation scope
Confirm model and component documents before order
The available document package contains a capsule-house verification document and separate certificates or test records for specified components. The verification document does not map every workbook model name, so its applicability to the quoted S4 must be confirmed.
- Model scope: do not treat category-level documentation as blanket S4 certification or general regulatory approval.
- Component scope: component documents apply only to the identified product, supplier and stated standard.
- Destination check: identify the documents required for the destination and confirm which quoted components they cover.
Document availability does not replace project-specific approval, local code review or confirmation of final components.
Transport and site coordination
Plan delivery for the agreed unit
Use the final dimensions and weight to confirm packing, shipping and handling arrangements. Share your delivery destination and site conditions before ordering.
- Unit accessories: lifting rings, transport fasteners, connectors and support legs are part of the base accessory package. Confirm included quantities and handling arrangements.
- Transport: provide the destination, quantity and site-access information. Shipping dimensions and weight must match the selected configuration.
- Site connections: coordinate the required power supply, water supply and drainage with the unit’s agreed equipment and connection details.
- Documentation: identify any project-specific drawings or component documentation needed for your destination before confirming the order.
Procurement FAQs
Before ordering the S4
Clarify your configuration, supply scope and destination requirements to obtain a project-specific quotation.
Can the S4 dimensions and configuration be customised?
Yes. The base configuration uses lower-level dimensions of 5.55 × 4.05 × 2.55 m and upper-level dimensions of 5.55 × 2.9 × 2.55 m, with a nominal 38.4 m² floor area and occupancy for two to four people.
Share your required dimensions, layout and equipment. Final specifications and included items are confirmed in the agreed proposal and quotation.
Can switches, sockets and wiring suit our country?
Yes. Australian, US, European and other destination-specific configurations are available. Provide the destination, required electrical standards and power-supply details. The base cable sizes and socket formats are not the only choices.
Are the bed and all items in the illustration included?

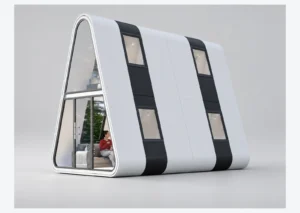

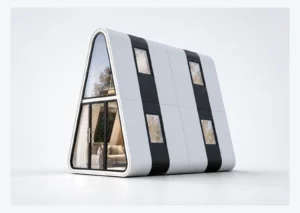

Not automatically. The exterior and floor plans illustrate the S4 appearance and room arrangement. Furniture, appliances, fittings and accessories must be confirmed in your quotation.
What does the 10 kW specification mean?
It is the electrical-power figure for the base S4 configuration, not an energy-consumption guarantee. Confirm the final equipment schedule and site power-supply requirements for your selected package.
Does the available documentation approve the complete S4 building?
No blanket approval should be inferred. Confirm the document scope, selected components and destination requirements for the quoted unit before ordering.
What is needed to discuss transport and a quotation?
Send your destination, quantity, intended use, required dimensions, preferred layout and equipment, electrical requirements and target delivery date. Shipping and handling arrangements depend on the agreed unit dimensions and weight.
Project enquiry
Specify your S4 unit
Send the quantity, destination, intended use, preferred finishes, electrical standard and target delivery date. We will confirm the final component and commercial schedule in the quotation.
