A 28 m² capsule for two to four guests, with a bedroom skylight, panoramic balcony and fitted bathroom.
S2 accommodation
S2 Guest Accommodation
The S2 combines a glazed guest room, bathroom facilities, bedroom skylight and panoramic balcony within a 28 m² base configuration for hospitality and private-retreat projects.
Bedroom, Balcony & Bathroom

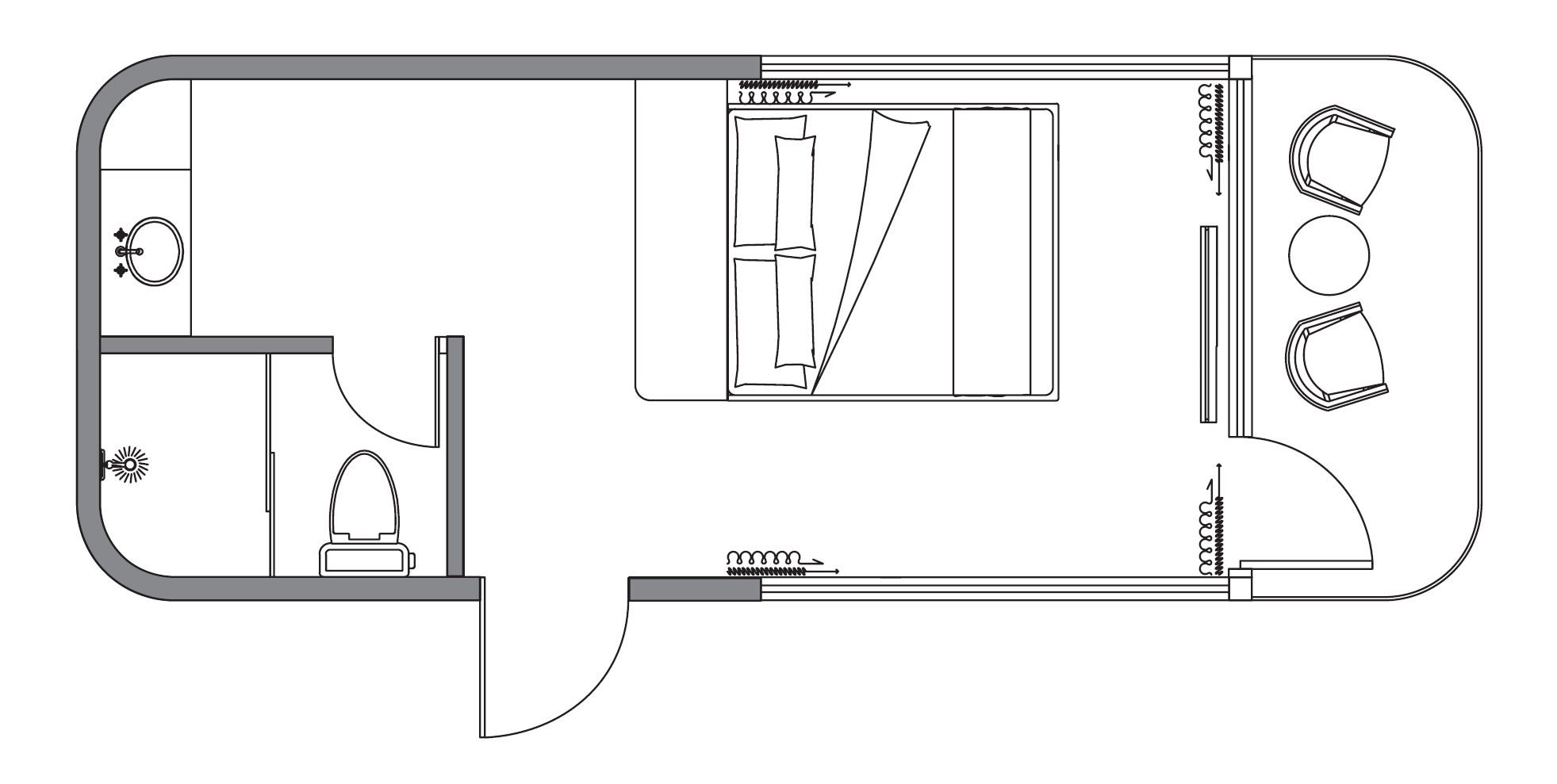

The illustrated arrangement places the bathroom at one end, the sleeping area in the centre and a furnished panoramic balcony zone beside the glazed frontage.
- Occupancy: two to four people in the base schedule.
- Enclosure: galvanised steel-frame construction, insulated exterior panels, Low-E insulating glazing and laminated-glass openings.
- Guest facilities: bathroom fittings, heating and cooling air conditioning, lighting, curtains and room controls.
Dimensions and configuration can be customised to your requirements. Final specifications and included items are confirmed in the agreed proposal and quotation.
Base specifications
Dimensions & Capacity
The dimensions and specifications below describe the base configuration. Changes to layout, finishes and equipment may affect dimensions, weight and price.
| Parameter | Base configuration |
|---|---|
| Model | S2 Space Capsule House |
| External dimensions (L × W × H) | 8,500 × 3,300 × 3,200 mm (8.5 × 3.3 × 3.2 m) |
| Nominal footprint | 28 m² |
| Occupancy | 2–4 people |
| Electrical power | 10 kW |
| Approximate total weight | 5 t (5,000 kg) |
External dimensions are not clear internal dimensions. Confirm the final shipping dimensions, equipment load and unit weight for the agreed configuration before arranging transport or site connections.
Structure and envelope
Frame, Glazing & Openings
A galvanised steel frame supports the insulated enclosure. Aluminium-alloy exterior panels, curtain-wall glazing, a bedroom skylight and a panoramic balcony define the S2 base configuration.
| Component | Base configuration |
|---|---|
| Main frame | Galvanised steel-frame structure |
| Exterior panels | Aluminium-alloy panels |
| Exterior coating | Fluorocarbon paint finish |
| Insulation | Polyurethane insulation layer |
| Curtain-wall glazing | Low-E tempered insulating glazing, 6 + 15A + 6 configuration |
| Bedroom skylight | Laminated tempered glazing, 6 + 1.52 + 6 configuration |
| Panoramic balcony guard | Tempered-glass protective guard, 6 + 1.52 + 6 configuration |
| Openable window | Laminated tempered glazing, 6 + 1.52 + 6 configuration |
| Entrance door | Custom stainless-steel entrance door |
| Entrance lock | Outdoor waterproof smart door lock for hospitality use |
| Equipment compartment | Compartment for air-conditioning and water-heating equipment |
| Equipment-compartment door | Custom aluminium-alloy door |
| Exterior lighting | Perimeter and top ambient light strips |
Confirm required finishes, opening arrangements and project-specific structural requirements with your enquiry. Final materials and details follow the agreed specification.
Interior finishes
Interior Finishes & Skylight
Panel finishes, flooring, lighting, curtains and the skylight sunshade form the base interior package. Discuss your preferred finishes and room arrangement before confirming the order.
| Component | Base configuration |
|---|---|
| Bedroom skylight sunshade | Motorised sunshade |
| Bedroom ceiling | Aluminium-alloy ceiling panels |
| Bedroom wall panels | Carbon-crystal decorative panels |
| Bedroom flooring | 6 mm SPC click-lock flooring |
| Bedroom ambient lighting | Surrounding ambient light strips |
| Bedroom general lighting | Downlights |
| Curtain track | Motorised curtain track |
| Bathroom ceiling | Bamboo-wood fibre panels |
| Bathroom wall panels | Carbon-crystal decorative panels |
| Bathroom flooring | Slip-resistant ceramic tiles |
| Bathroom privacy door | One-way frosted tempered-glass door |
Bathroom equipment
Bathroom Fittings & Hot Water
The base bathroom package includes sanitary fixtures, water heating, lighting and ventilation. Equipment specifications and included fittings are confirmed with the selected layout.
| Component | Base configuration |
|---|---|
| Hot-water equipment and shower | Electric water heater and shower fittings |
| Vanity and basin | Custom sintered-stone washbasin and vanity, mirror, cabinet and floor drain |
| Toilet | Toilet fixture |
| Lighting and ventilation | Bathroom lighting and ventilation |
| Accessories | Towel rack |
Confirm water-heater capacity, fixture selections and water-supply and drainage requirements in the agreed specification.
Electrical and services
Electrical & Services
Switches, sockets and wiring can be configured to Australian, US, European or other destination-market requirements. Specify your destination, required electrical standards and power-supply details when enquiring.
| Component | Base configuration |
|---|---|
| Base wiring | 1.5 / 2.5 / 4 / 10 mm² electrical cables and Category 6 network cable; final cable specification follows destination and equipment requirements |
| Cable conduit | Insulating PVC conduit |
| Water supply and drainage | Pressure-resistant water-supply and drainage pipework |
| Air conditioning | Split-system heating and cooling air conditioner, 2 HP class in the base configuration |
| Sockets | Destination-specific sockets; three-hole and five-hole formats are base examples, not the only choices |
| Switches | Switch panels configured for the required destination standard |
The 2 HP class describes the base air-conditioner size, not an electrical-input or cooling-capacity value. Final component specifications and included items are confirmed in the agreed proposal and quotation.
Room controls
Lighting, Curtains & Room Controls
The base room-control functions support guest-room lighting, curtains and power management. Confirm the selected control functions and equipment with your fit-out package.
| Function | Base configuration |
|---|---|
| Key-card power control | Insert card to enable power; remove card to disconnect power |
| Scene controls | Multi-scene function panel |
| Lighting controls | Intelligent lighting control |
| Curtain controls | Intelligent curtain control |
| Voice controls | Intelligent voice-control system |
Configuration choices
Finishes & Configuration Choices
The base configuration is a starting point for the enquiry. Tell us which dimensions, layout, finishes or equipment need to change.
- Dimensions and layout: discuss required external dimensions, room arrangement and intended occupancy.
- Finishes and fit-out: specify exterior and interior finish preferences, bathroom fittings and room-control requirements.
- Electrical components: request switches, sockets and wiring suited to your destination, including Australian, US or European requirements.
- Included items: confirm furniture, appliances and accessories explicitly in the quotation. Items shown in a visualisation are not automatically included.
Customisation may affect dimensions, weight, equipment selection and price. Final specifications and included items follow the agreed proposal and quotation.
Documentation scope
Model & Component Documentation
Specify your destination and required documents when enquiring. Check the model, component and standard covered by each document against the selected S2 configuration.
- Quoted unit: confirm the model and dimensions covered by any verification document.
- Components: match certificates and test records to the specified product, supplier and standard.
- Destination requirements: identify the documents needed for the project and their applicable scope.
Document availability does not replace project-specific approval, local code review or confirmation of final components.
Transport and site coordination
Transport & Site Connections
Use the final dimensions and weight to confirm packing, shipping and handling arrangements. Share your delivery destination and site conditions before ordering.
- Unit accessories: lifting rings, transport fasteners, connectors and support legs are part of the base accessory package. Confirm included quantities and handling arrangements.
- Transport: provide the destination, quantity and site-access information. Shipping dimensions and weight must match the selected configuration.
- Site connections: coordinate the required power supply, water supply and drainage with the unit’s agreed equipment and connection details.
- Documentation: identify any project-specific drawings or component documentation needed for your destination before confirming the order.
Procurement FAQs
S2 Procurement FAQs
Clarify your configuration, supply scope and destination requirements to obtain a project-specific quotation.
Can the S2 dimensions and configuration be customised?
Yes. The base external dimensions are 8.5 × 3.3 × 3.2 m, with a nominal 28 m² footprint and occupancy for two to four people. Share your required dimensions, layout and equipment.
Final specifications and included items are confirmed in the agreed proposal and quotation.
Can switches, sockets and wiring suit our country?
Yes. Australian, US, European and other destination-specific configurations are available. Provide the destination, required electrical standards and power-supply details. The base cable sizes and socket formats are not the only choices.
Are the bed and all items in the illustration included?

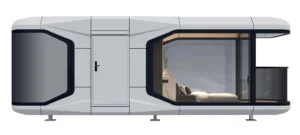

Not automatically. The exterior and floor plan illustrate the S2 appearance and room arrangement. Furniture, appliances, fittings and accessories must be confirmed in your quotation.
What does the 10 kW specification mean?
It is the electrical-power figure for the base S2 configuration, not an energy-consumption guarantee. Confirm the final equipment schedule and site power-supply requirements for your selected package.
Which documents apply to our S2 configuration?
Applicability depends on the quoted model, components and destination requirements. Confirm the scope of verification documents, certificates and test records before ordering. Component documentation does not establish approval of the complete building.
What is needed to discuss transport and a quotation?
Send your destination, quantity, intended use, required dimensions, preferred layout and equipment, electrical requirements and target delivery date. Shipping and handling arrangements depend on the agreed unit dimensions and weight.
S2 project enquiry
Discuss Your S2 Configuration
Send the quantity, destination, intended use, preferred finishes, electrical standard and target delivery date. Final specifications and included items follow the agreed quotation.
