← Space Capsule House

S1 · 18 m² guest accommodation

S1 Space Capsule House

An 18 m² guest unit for two people, with full-height glazing, a sleeping area and bathroom.

Footprint
18 m²
Occupancy
2 people
Power
10 kW
Approx. weight
3.8 t (3,800 kg)
01 / 03 S1 front exterior reference with full-height glazing and the compact guest-room form.

S1 Space Capsule House

S1 accommodation

S1 Guest-Room Layout

A glazed guest unit with sleeping and bathroom zones for glamping resorts, boutique hospitality and private retreats.

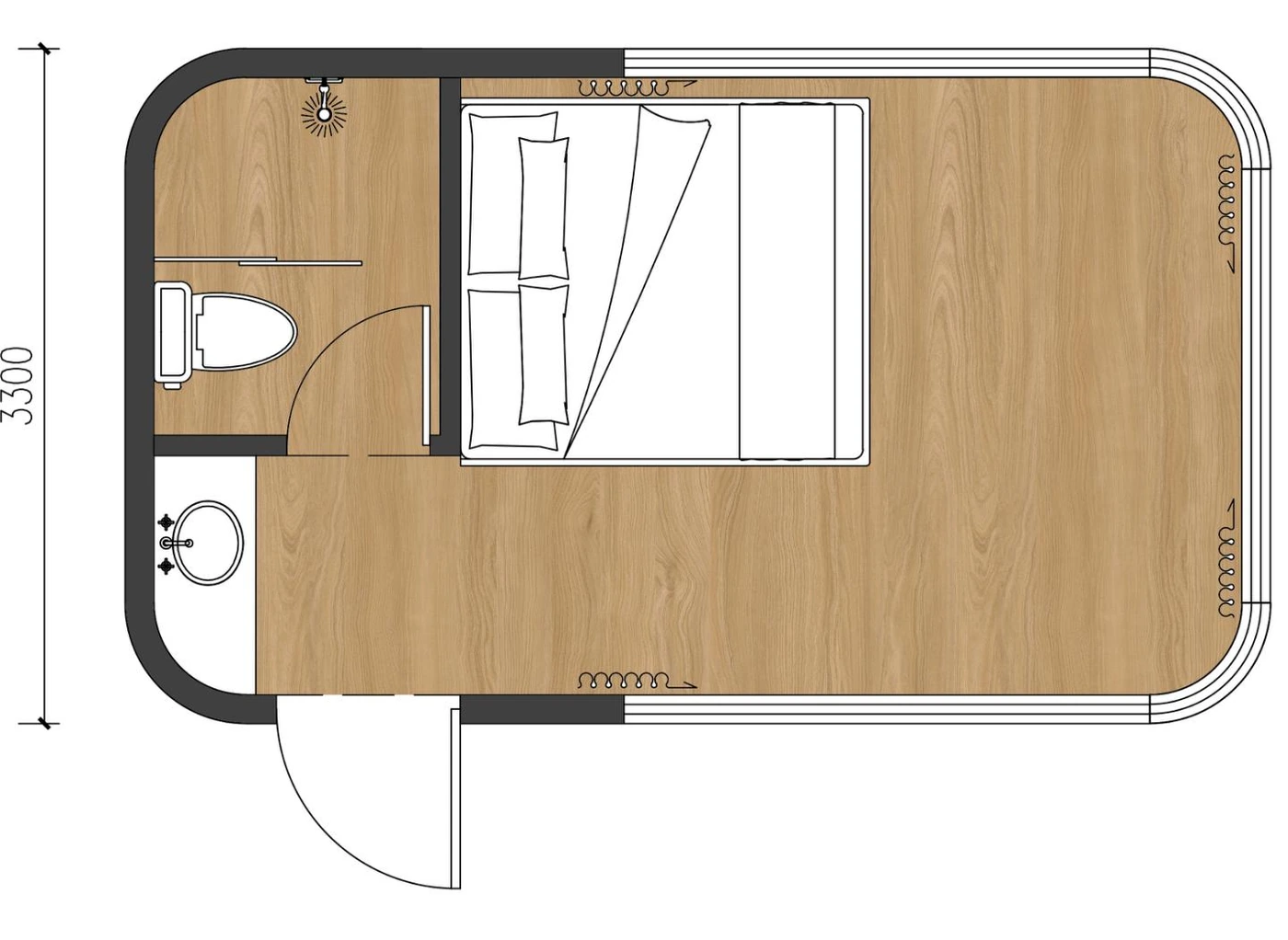

S1 space capsule house floor plan showing a double bed, bathroom, washbasin, entrance and glazed frontage
S1 Floor PlanRoom arrangement and furniture positions.

Sleeping Area & Bathroom

The layout example places a double bed beside the glazing, with the toilet, washbasin and entrance toward the rear.

  • Occupancy: two people in the base configuration.
  • Enclosure: steel-frame construction, insulated exterior panels and Low-E tempered insulating glazing.
  • Guest facilities: bathroom fittings, heating and cooling air conditioning, lighting and room controls.

Customise dimensions and fit-out for your project. Final specifications and included items follow the agreed quotation.

Specifications

S1 Dimensions & Capacity

Standard dimensions and equipment are shown below. Layout, finishes and equipment changes can affect size, weight and price.

ParameterBase configuration
ModelS1 Space Capsule House
External dimensions (L × W × H)5,600 × 3,300 × 3,200 mm (5.6 × 3.3 × 3.2 m)
Nominal footprint18 m²
Occupancy2 people
Electrical power10 kW
Approximate total weight3.8 t (3,800 kg)

Dimensions are external, not clear internal dimensions. Use your final shipping size, weight and equipment loads to plan transport and site connections.

Structure and envelope

Frame, Insulation & Glazing

A galvanised steel frame supports the insulated enclosure. Aluminium-alloy exterior panels and glazed frontage define the S1 appearance.

ComponentBase configuration
Main frameGalvanised steel-frame structure
Exterior panelsAluminium-alloy panels
Exterior coatingFluorocarbon paint finish
InsulationPolyurethane insulation layer
GlazingLow-E tempered insulating glazing, 6 + 15A + 6 configuration
Entrance doorCustom stainless-steel entrance door
Entrance lockOutdoor smart door lock for hospitality use
Equipment compartmentCompartment for air-conditioning and water-heating equipment
Exterior lightingSurrounding ambient light strip at the top of the enclosure

Tell us your exterior finish, door and window arrangement, and structural requirements.

Interior finishes

Bedroom & Bathroom Finishes

Standard interiors include panel finishes, flooring, lighting and curtains. Choose finishes and a room arrangement for your stay.

ComponentBase configuration
Bedroom ceilingAluminium-alloy ceiling panels
Bedroom wall panelsCarbon-crystal decorative panels
Bedroom flooringSPC click-lock flooring
Bedroom ambient lightingSurrounding ambient light strips
Bedroom general lightingDownlights
Curtain trackMotorised curtain track
Bathroom ceilingBamboo-wood fibre panels
Bathroom wall panelsCarbon-crystal decorative panels
Bathroom flooringSlip-resistant ceramic tiles
Bathroom privacy doorFrosted tempered-glass door

Bathroom equipment

Bathroom Fittings & Hot Water

Standard bathroom equipment includes sanitary fixtures, water heating, lighting and ventilation. Select the fittings for your layout.

ComponentBase configuration
Hot-water equipment and showerElectric water heater and shower fittings
Vanity and basinCustom sintered-stone washbasin and vanity, mirror, cabinet and floor drain
ToiletToilet fixture
Lighting and ventilationBathroom lighting and ventilation
AccessoriesTowel rack

Select your water-heater capacity and fittings, and confirm water-supply and drainage connections.

Electrical and services

Electrical & Equipment

Configure switches, sockets and wiring for Australian, US, European or other destination-market requirements. Tell us your destination, electrical standards and power-supply details.

ComponentBase configuration
Base wiring1.5 / 2.5 / 4 / 10 mm² electrical cables and Category 6 network cable; final cable specification follows destination and equipment requirements
Cable conduitInsulating PVC conduit
Water supply and drainageWater-supply and drainage pipework
Air conditioningSplit-system heating and cooling air conditioner, 1.5 HP class in the base configuration
SocketsDestination-specific sockets; three-hole and five-hole formats are base examples, not the only choices
SwitchesSwitch panels configured for the required destination standard

The 1.5 HP class describes the base air-conditioner size, not an electrical-input or cooling-capacity value. Final component specifications and included items are confirmed in the agreed proposal and quotation.

Room controls

Lighting & Room Controls

Room controls manage lighting, curtains and guest-room power. Choose the control functions for your fit-out.

FunctionBase configuration
Key-card power controlInsert card to enable power; remove card to disconnect power
Scene controlsMulti-scene function panel
Lighting controlsIntelligent lighting control
Curtain controlsIntelligent curtain control
Voice controlsIntelligent voice-control system

Configuration choices

Plan Your S1 Configuration

Choose your dimensions, layout, finishes and equipment before production.

  • Dimensions and layout: discuss required external dimensions, room arrangement and intended occupancy.
  • Finishes and fit-out: specify exterior and interior finish preferences, bathroom fittings and room-control requirements.
  • Electrical components: request switches, sockets and wiring suited to your destination, including Australian, US or European requirements.
  • Included items: confirm furniture, appliances and accessories explicitly in the quotation. Items shown in a visualisation are not automatically included.

Your choices can affect dimensions, weight, equipment and price. The approved quotation defines what is included.

Documentation

Product Documents

Request documents for your selected S1 configuration and destination. Available records cover the capsule-house type and specified components.

  • Capsule-house document: The voluntary Verification of Conformity lists S1 and references EN 1090-1:2009+A1:2011 under the Construction Products Regulation.
  • Component records: Supplier certificates and test records cover selected glazing, wiring, plumbing, sanitary, switch, socket and fibre-cement-board products.
  • Covered products: Each component record identifies the product, supplier and standard it covers.
  • Project requirements: Share the destination, required documents and exact components in your selected configuration.

The voluntary document covers its stated scope, not whole-building approval or permission to use a conformity mark.

Transport and site coordination

Delivery & Site Preparation

Plan packing, transport and handling using the final unit size and weight. Tell us your destination and site conditions.

  • Unit accessories: lifting rings, transport fasteners, connectors and support legs are part of the base accessory package. Confirm included quantities and the handling arrangements for your order.
  • Transport: provide the destination, quantity and site-access information. Shipping dimensions and weight must match the selected configuration.
  • Site connections: coordinate the required power supply, water supply and drainage with the unit’s agreed equipment and connection details.
  • Documentation: identify any project-specific drawings or component documentation needed for your destination before confirming the order.

Common Questions

S1 FAQs

Review the layout, included items and destination requirements before ordering.

Can I customise S1?

Yes. Standard external size: 5.6 × 3.3 × 3.2 m; nominal footprint: 18 m², planned for two people. Share your dimensions, layout and equipment for a quotation.

Can switches, sockets and wiring suit our country?

Yes. Australian, US, European and other destination-specific configurations are available. Provide the destination, required electrical standards and power-supply details. The base cable sizes and socket formats are not the only choices.

Are the bed and all items in the illustration included?

Images show layout and finish examples. Furniture, appliances, fittings and accessories are included only when specified in your quotation.

What does the 10 kW specification mean?

It is the electrical-power figure for the base S1 configuration, not an energy-consumption guarantee. Confirm the final equipment schedule and site power-supply requirements for your selected package.

Which documents apply to the S1 configuration?

Available records are confirmed for the selected S1 model, components and destination. Whole-building and local project approval are separate from component documentation.

What do you need for a quotation?

Send the quantity, destination, use, dimensions, layout, equipment, electrical requirements and delivery date. Transport depends on the final unit size and weight.
