Prepared components
Frame members, panels, boards, openings and selected electrical items follow the approved schedule.
← Container House Systems

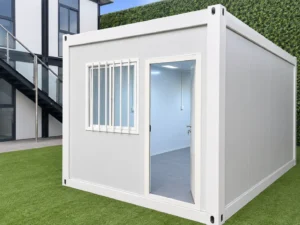

Bolted modular building
Detachable Container House
Factory-prepared components pack separately for transport and bolt together on site for accommodation, offices and camp facilities.
5990 × 2990 mm · Basic and quality configurations · Bolted site assembly
Product overview
Components & Site Assembly
Columns, beams, roof and floor components, wall panels and openings arrive as a coordinated kit for bolted site assembly.
Basic and quality configurations share a 5990 × 2990 × 2800 mm exterior, with different frame thicknesses and opening specifications.
- Product type
- Bolted detachable modular building kit
- Reference size
- 5990 × 2990 × 2800 mm external
- Configuration basis
- Basic 2.0 mm and quality 2.3 mm frame schedules
- Transport form
- Protected structural and enclosure components
- Assembly method
- Sequenced frame, enclosure and service installation on site

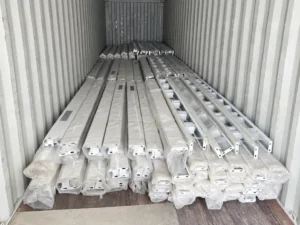

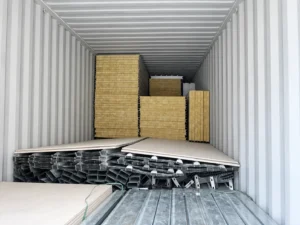

Protected packing

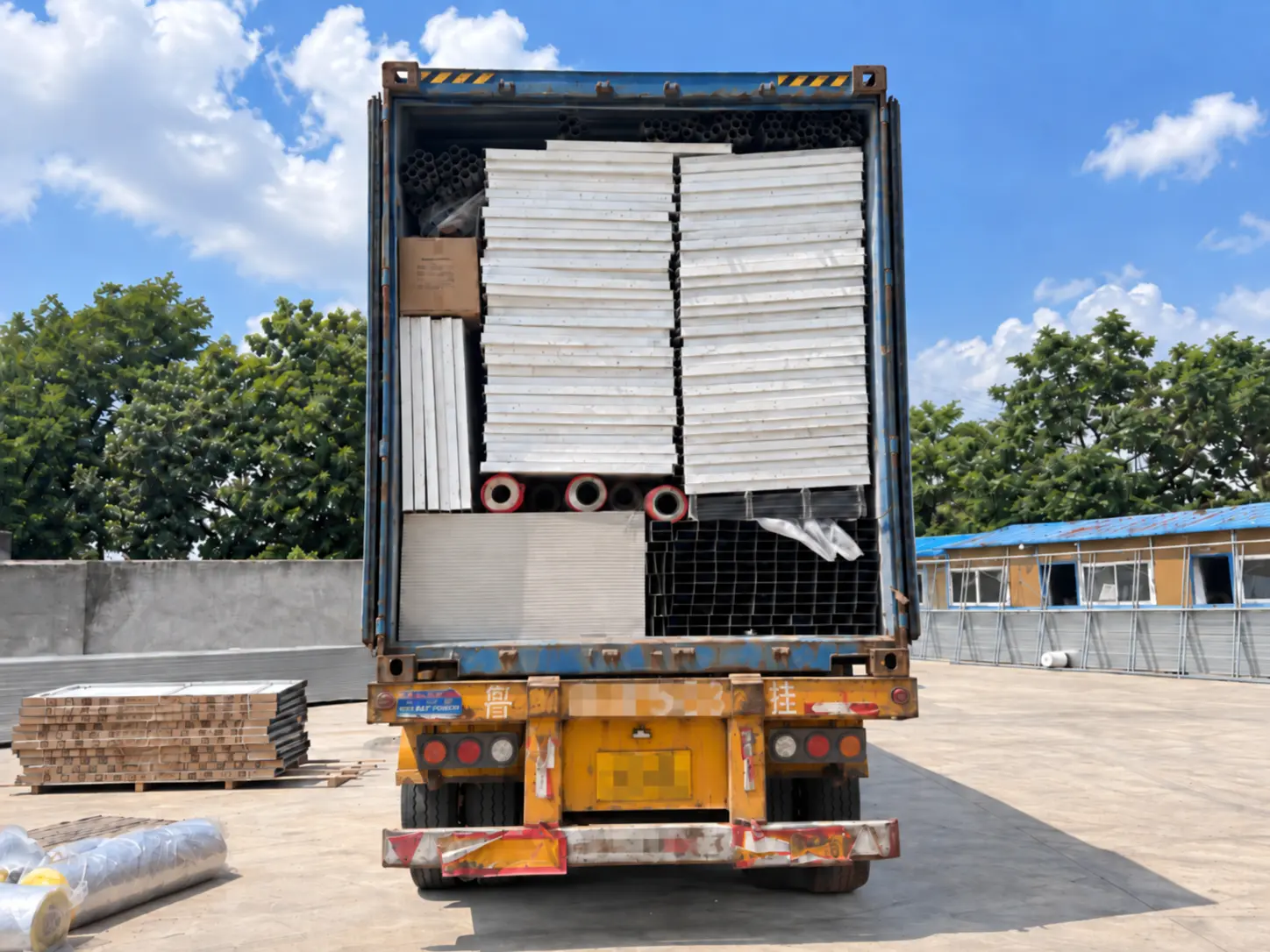

Components are grouped, wrapped and identified for the confirmed container or truck loading plan.
Sequenced assembly
Floor, columns, roof, enclosure and openings are installed in the approved order.
Project fit-out
Room layout, finishes, electrical standard and external connections follow the order documents.
Supplier assurance

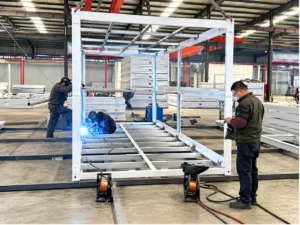

Factory & Export Support
Explore frame preparation, component packing, quality checks and export support for your project.
Product configurations
Dimensions & Configurations
Compare basic and quality configurations by frame thickness, roof and ceiling sheets, doors and windows.
| Specification item | Quality reference | Basic reference |
|---|---|---|
| External dimensions | 5990 × 2990 × 2800 mm | 5990 × 2990 × 2800 mm |
| Internal clear dimensions | 5820 × 2720 × 2450 mm | 5820 × 2720 × 2450 mm |
| Column reference | 210 × 150 mm galvanized cold-formed steel, 2.3 mm | 210 × 150 mm galvanized cold-formed steel, 2.0 mm |
| Floor main beam | 160 mm section, 2.3 mm | 160 mm section, 2.0 mm |
| Roof sheet | 0.426 mm profiled colour steel | 0.376 mm profiled colour steel |
| Ceiling liner | 0.326 mm profiled colour steel | 0.286 mm profiled colour steel |
| Wall panel | 50 mm rock-wool sandwich panel, 0.286 mm steel skins | 50 mm rock-wool sandwich panel, 0.276 mm nominal steel skins |
| Door reference | 840 × 2035 mm A-grade steel door | 920 × 1980 mm C-grade steel door |
| Window reference | 1130 × 1100 mm PVC sliding window, single glazing, security bars and screen | 950 × 1100 mm PVC window, single glazing and security bars, without screen |
Project planning
Choose Your Configuration
Send your location, room requirements, quantity and target date to discuss the suitable component package.
System components
Frame, Panels & Fit-Out
The package combines galvanized framing, insulated panels, floor boards and selectable openings and services.
- Primary frame
- Galvanized cold-formed columns and beams joined with M12 × 35 high-strength bolts; powder-coated finish listed at 80 μm or greater.
- Roof system
- Flat roof with organised internal drainage, profiled external sheet, 50 mm glass-wool insulation and profiled internal liner.
- Wall system
- 50 mm rock-wool sandwich panels with a 60 kg/m³ insulation core and A1 non-combustible rating in the supplied schedule.
- Floor system
- Galvanized floor framing with an 18 mm cement floor board. Final floor finish is confirmed separately.
- Doors and windows
- Steel door and PVC window dimensions differ between the basic and quality references and must follow the selected schedule.
- Electrical option
- 220 V, 50 Hz package, with voltage, sockets, protection and wiring selected for the destination.

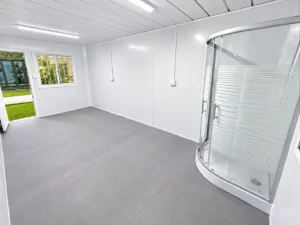

Layout and fit-out
Layout & Configuration
Select the frame configuration, room plan, services and assembly arrangements for your project.
- 01Reference schedule
Select the basic or quality frame and enclosure basis before individual variations are priced.
- 02Room use and layout
State occupancy, furniture, internal zoning, openings and circulation requirements.
- 03Services and destination
Record voltage, socket standard, utility interfaces and any plumbing or sanitary scope.
- 04Packing and assembly
Coordinate component labels, container plan, unloading access, tools, crew and target programme.
Packing and assembly
Packing & Site Assembly
Arrange component packing, unloading, storage and assembly around the room layout and site access.
- 01Confirm the project brief and site constraints
- 02Approve the reference schedule and drawings
- 03Prepare, inspect and label the components
- 04Approve packing, unloading and storage arrangements
- 05Assemble the frame, enclosure and openings
- 06Complete services, inspection and handover
Prepare the base, unloading access, component storage and utility connections before delivery.
Project applications
Camp & Office Applications
Use the component system to plan accommodation, site offices and shared camp facilities.
Worker accommodation
Repeatable sleeping or welfare rooms planned around occupancy and utility demand.
Construction camps
Temporary project buildings where component transport and staged assembly suit the site plan.
Site offices and classrooms
Single or connected rooms with destination-specific openings, finishes and electrical scope.
Remote project support
Support spaces coordinated with restricted access, storage, assembly and utility conditions.
Project enquiry
Plan Your Detachable Project
Share your destination, room requirements, quantity and target date to discuss the component package.
Start a Project EnquiryWhat is included in the detachable package?
The approved schedule defines the structural frame, roof and floor components, wall panels, openings, fasteners and selected electrical items. Packing lists and quotation documents control the final supply.
What is the difference between the basic and quality references?
The quality reference uses thicker columns and floor main beams, higher roof and ceiling sheet gauges, a different wall-panel profile and upgraded opening specifications.
Does assembly require a crane?
The system is delivered as separate components rather than a completed volumetric unit. The required lifting aids, unloading method and assembly equipment depend on the approved method statement and site conditions.

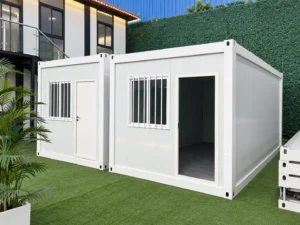

Can several units create a larger building?
Units can be coordinated into connected layouts when structural interfaces, weather sealing, circulation, utilities and local approval are addressed in the project drawings.
