Container House Systems40ft Expandable Container House

Side-wing expandable living space

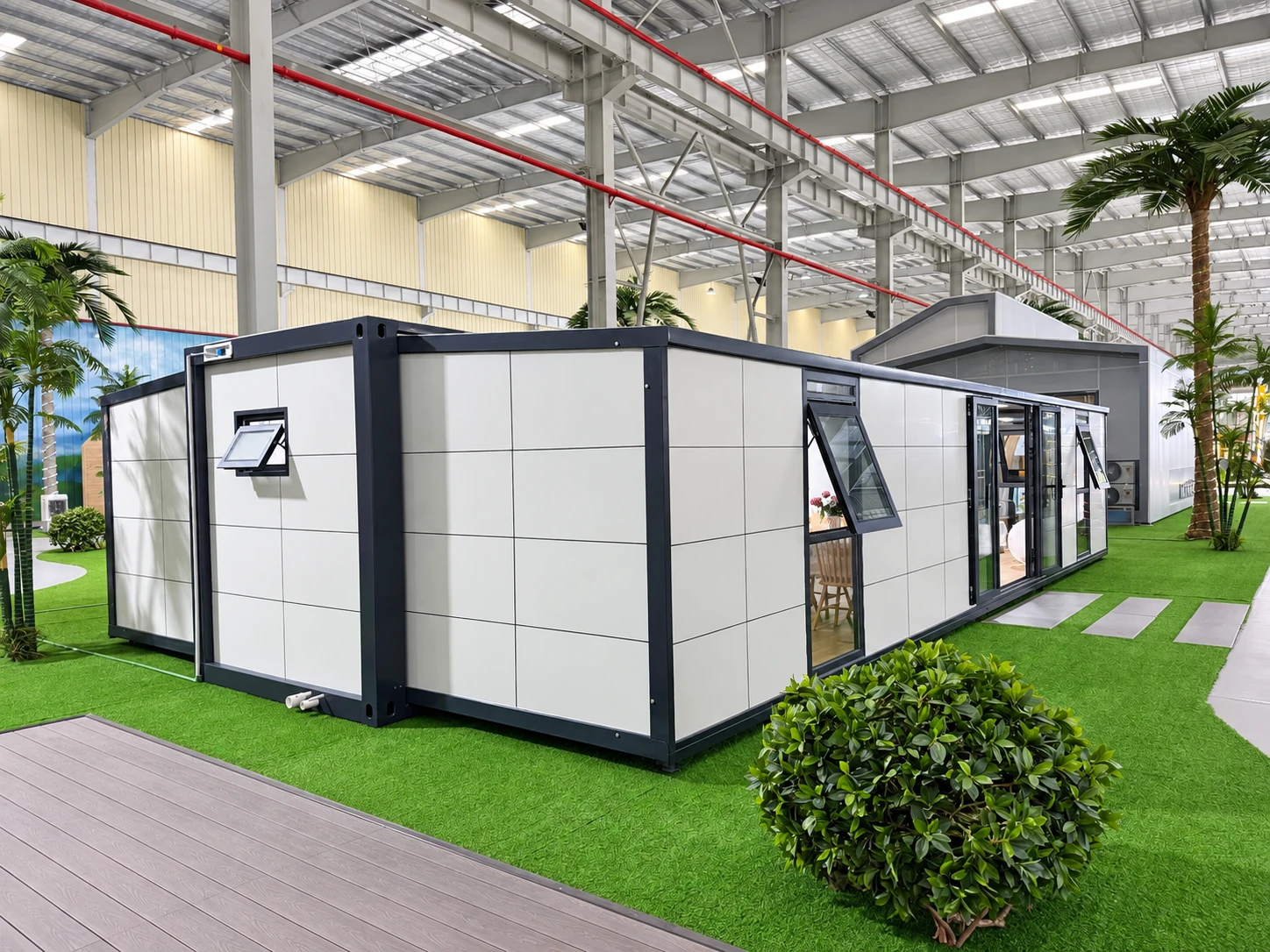

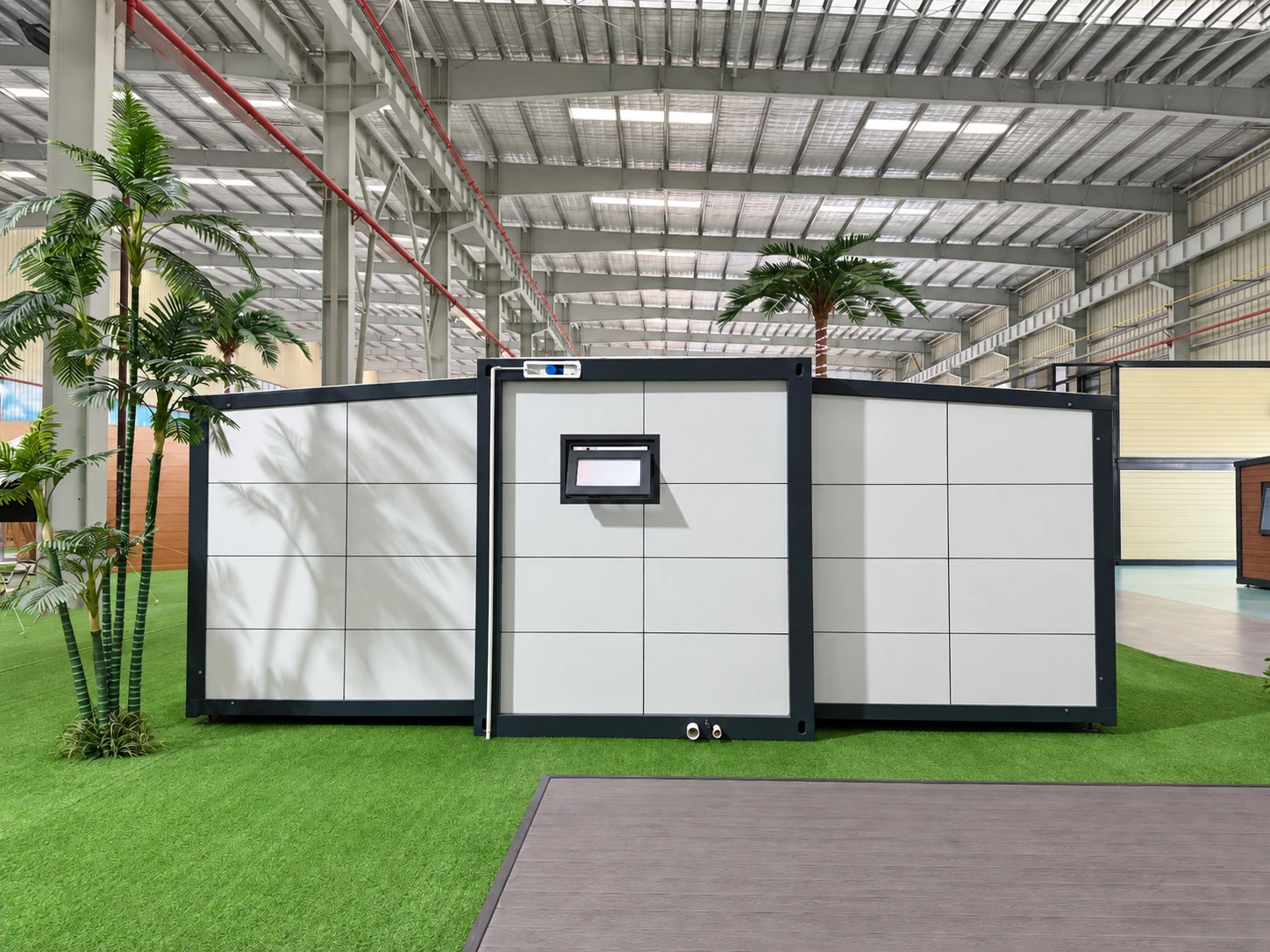

40ft Expandable Container House

Expand a 40ft unit into a two- to four-bedroom living layout with kitchen and bathroom options. Check the site opening space and your required fit-out.

Building supply for contractors, distributors and project owners. Export experience across 60+ countries.

System
Side-wing expandable configuration
Layout
Living, kitchen and bathroom options
Selection
Model-specific dimensions and fittings
40ft expanded
11800 × 6220 × 2480 mm
40ft folded
11800 × 2200 × 2480 mm

Standard configurations are a starting point. The agreed drawings and quotation define your selected supply.

Project fit

Product fit at a glance

Why this system
A double-wing layout creates a wider living space after transport. Choose two, three or four bedrooms around the intended occupants.
Project fit
Living accommodation where the site allows safe opening, foundation support and connections for power, water and drainage.
Supply & delivery
Confirm the 40ft layout, finishes, wiring and optional bathroom package. Freight, installation, site crane fees and taxes are separate from the unit price.

Share the destination, intended use and quantity to review the configuration, supply scope and delivery plan.

Request a project quote

Product overview

Choose the 40ft room layout

Two bedrooms
Living, kitchen and bathroom zones with two separate bedrooms.
Three bedrooms
A three-bedroom arrangement with shared living and service areas.
Four bedrooms
A four-bedroom arrangement coordinated with access, furniture and service positions.
Optional terrace
Confirm the terrace model, dimensions, support and packing requirements with the selected layout.

Packing protects windows, loose accessories and finished surfaces before the wings are secured and wrapped. Taxes, freight, installation, site crane fees and other unquoted items are separate from the unit price.

Delivery and site planning

Coordinate supply and site work

The transport configuration and final placement must be planned together. Access, unloading, opening clearance and utility connections depend on the selected model and site.

  1. Confirm the selected model

    Agree the expanded layout, folded dimensions, included fittings and packing schedule.

  2. Check site clearance

    Review the unloading method, prepared base, safe opening area and vehicle access.

  3. Agree services and costs

    Confirm power, water, drainage and selected fittings. Freight, taxes, installation and site-crane costs are outside the unit price and need separate confirmation.

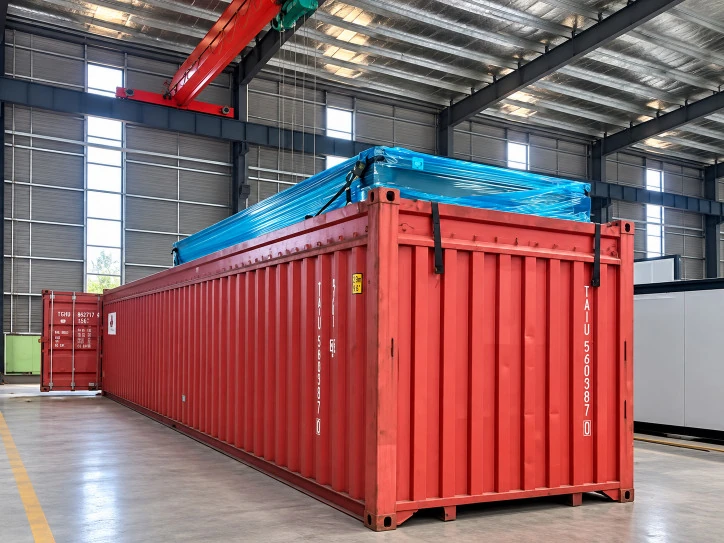

Wrapped expandable house being lowered into an open-top shipping container
Container loading Wrapped unit being lowered into an open-top shipping container; final transport follows the agreed plan.

Review the frame-production, measurement and water-system check photographs. Interior visualisations illustrate layout choices, not completed-project evidence.

Factory support

From production to shipment

Production sequence
Steel selection, cutting, welding and frame assembly are followed by grinding and coating, floors and panels, concealed services, openings, room fittings, ceilings, roofing and packing.
Inspection scope
Check frame grade and thickness, dimensions, doors and windows, room configuration, electrical fittings, water and sanitary connections, and the folded and wrapped condition before shipment.
Premium Modular House factory entrance in Zhaoqing
Factory support · Zhaoqing

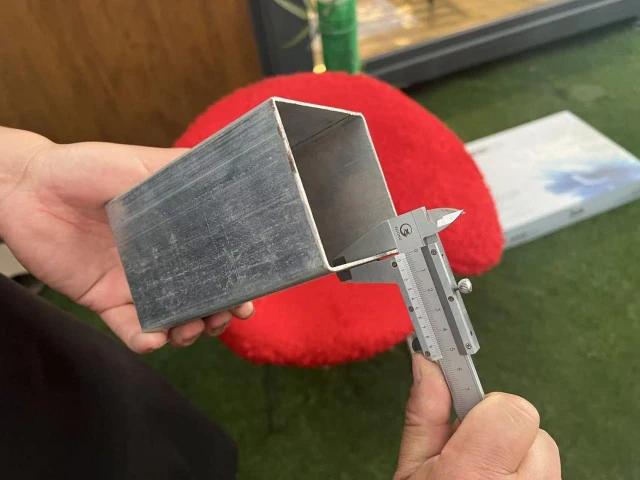

Steel frame section thickness being measured with a caliper
Section measurement Steel section thickness being measured with a caliper.

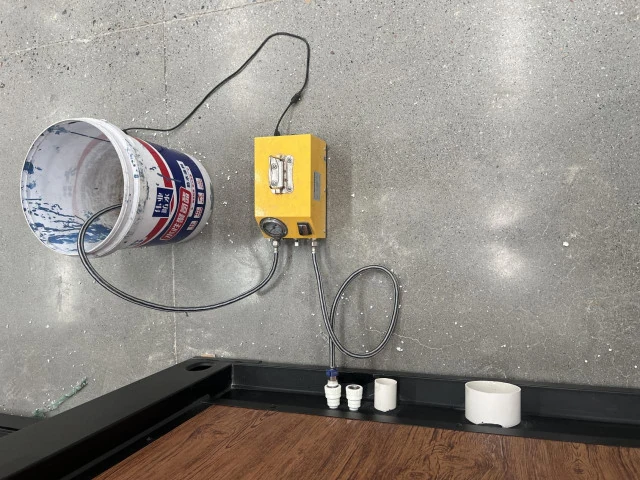

Water-testing pump connected to plumbing inside an expandable house
Water-system check Water-testing equipment connected to the house plumbing.

Configuration

Choose the space and specification

Select the model’s expanded and transport dimensions, then coordinate the room plan, openings, finishes and included fittings.

Selection focus. Compare expandable when living space and room layout are the priority. Check expanded dimensions, opening clearance and included fittings; this is not the same system as a folding site unit.

40ft dimensions & configuration

Read the 40ft reference specifications
Dimensions & Layouts
Component / parameter40ft Configuration
Expanded dimensions11800 × 6220 × 2480 mm
Folded dimensions11800 × 2200 × 2480 mm
Internal height2240 mm
Unit weight5600 kg
Bedroom layouts2, 3 or 4 bedrooms
Shared living spacesLiving area, kitchen and bathroom
Exterior optionTerrace variant

40ft reference only. Other models and terrace variants use their own drawings and configuration schedules.

40ft component specifications
Steel Frame Components
Component / parameter40ft Configuration
Primary floor-frame membersChannel section: 60 × 160 × 5.0 mm
Galvanized hollow sections: 80 × 40 × 2.0 mm; 40 × 60 × 1.5 mm
Primary roof-frame membersChannel section: 60 × 160 × 5.0 mm
P-profile: 80 × 40 × 1.5 mm
Galvanized hollow sections: 20 × 40 × 1.5 mm; 60 × 40 × 1.5 mm
ColumnsGalvanized formed section: 210 × 150 × 4.0 mm
Secondary-frame membersP-profile: 80 × 40 × 1.5 mm
Galvanized formed section: 40 × 90 × 2.0 mm
Galvanized hollow section: 60 × 40 × 1.5 mm
Frame steel gradeQ235
HingesThickened galvanized steel hinges, Q235
Corner fittingsDimensions confirmed in the selected model drawing.
Floor, Walls & Roof
Component / parameter40ft Configuration
Central floor board18 mm cement board
Side floor boards18 mm plywood
Floor finishStone-plastic composite flooring
External wall panels50 mm integrated panels
External claddingDecorative metal cladding
Internal partitions50 mm integrated panels
Main and side roof panels50 mm integrated panels
Doors & Windows
Component / parameter40ft Configuration

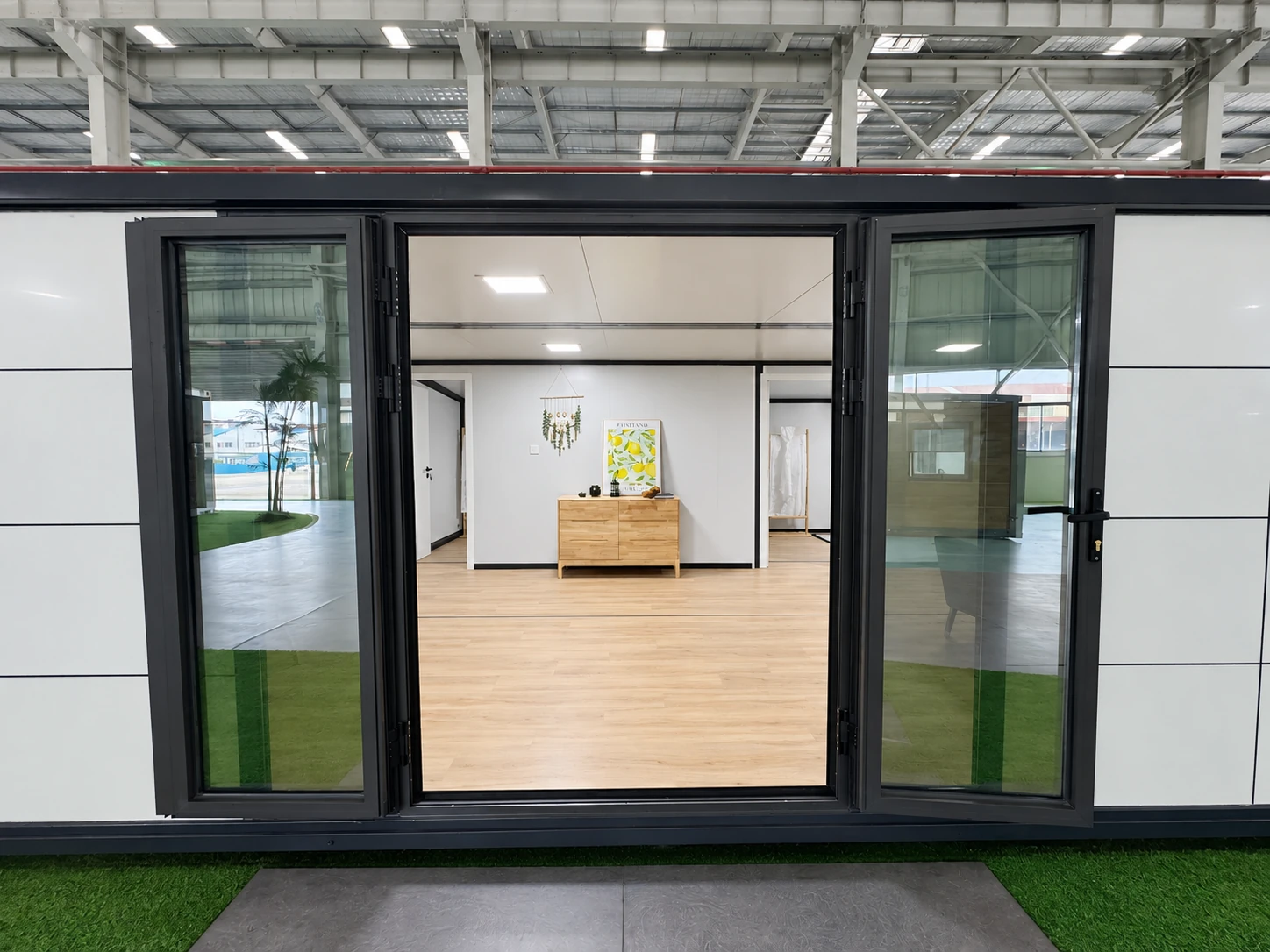

Entrance doorSecurity door with keypad lock
Internal doorsAluminum-and-wood doors
WindowsThermally broken outward-opening windows with security mesh
Main windows930 × 930 mm, 8 units
Small window500 × 500 mm, 1 unit
Electrical Components
Component / parameter40ft Configuration
Base wiring configurationAustralian-type
Incoming cable cross-section6 mm²
Air-conditioning socket cable4 mm²
General socket cable2.5 mm²
Lighting cable1.5 mm²
Two-pole 63 A residual-current protection1 device
Two-pole 32 A residual-current protection1 device
Two-pole 16 A residual-current protection1 device
LED lights9 units
Standard socketsThree-pin sockets
Socket standard optionsConfigured to customer requirements
Optional Bathroom Package
Component / parameterOptional fittings
Bathroom doorGlass door
Shower enclosureIntegrated shower enclosure with sliding doors
Shower glass8 mm tempered glass
ToiletToilet
WashbasinWashbasin
Shower fittingsShower head and fittings

Frame production & inspection

Coordinate frame preparation with the selected member sections, materials and component schedule.

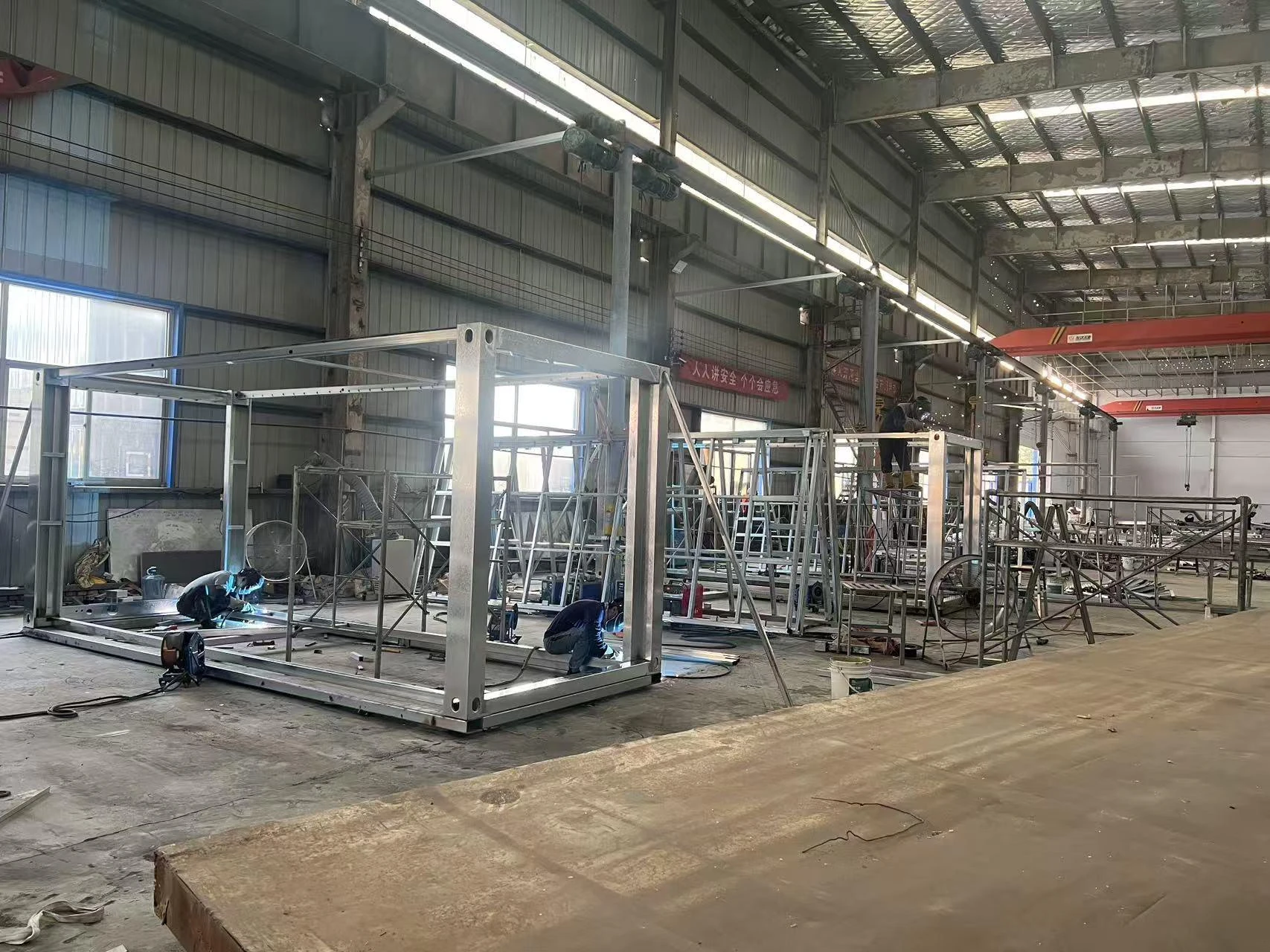

Expandable house steel frames under assembly in the production workshop
Frame production Expandable-house steel frames under assembly in the workshop.

Materials, fittings & layout

View current products
Frame and panels
The 40ft reference has galvanized steel framing and 50 mm wall, partition and roof panels. Member sizes and materials belong to that configuration, not every expandable model.
Floor and finishes
The 40ft basis uses an 18 mm cement-board central floor, 18 mm plywood side floors and stone-plastic composite finish. Alternative finishes and insulation are selected with the model.
Doors and windows
The 40ft reference has a security entrance door with keypad lock and thermally broken outward-opening windows with security mesh. Door materials and window styles can be reviewed.
Electrical selection
The 40ft reference configuration is Australian-type. Wiring, switches and sockets can instead be specified for US, European or other destination requirements; confirm the actual component schedule.
Optional bathroom package
Sanitary fittings are optional. The optional package lists a glass door, sliding shower enclosure with 8 mm tempered glass, toilet, washbasin and shower fittings when selected.
Optional finishes and insulation
Choose wood-grain, stone-effect, brick-effect or solid-colour metal finishes. EPS, rock-wool or polyurethane insulation and bamboo-wood fibre internal panels can be reviewed for the selected model. Alternatives may change dimensions, weight and price.
Layout and included items
Review the 40ft model’s 2–4 bedroom layouts and any terrace variant. Furniture, appliances and kitchen fittings are not defined by the interior images; confirm them in the quotation.

Living & bathroom options

These interior visualisations illustrate space and fit-out choices, not a delivered-project photograph or an automatic furniture package.

40ft expandable house interior visualisation showing a kitchen, dining table and living space
Living and dining visualisation 40ft interior design reference with living and dining spaces.

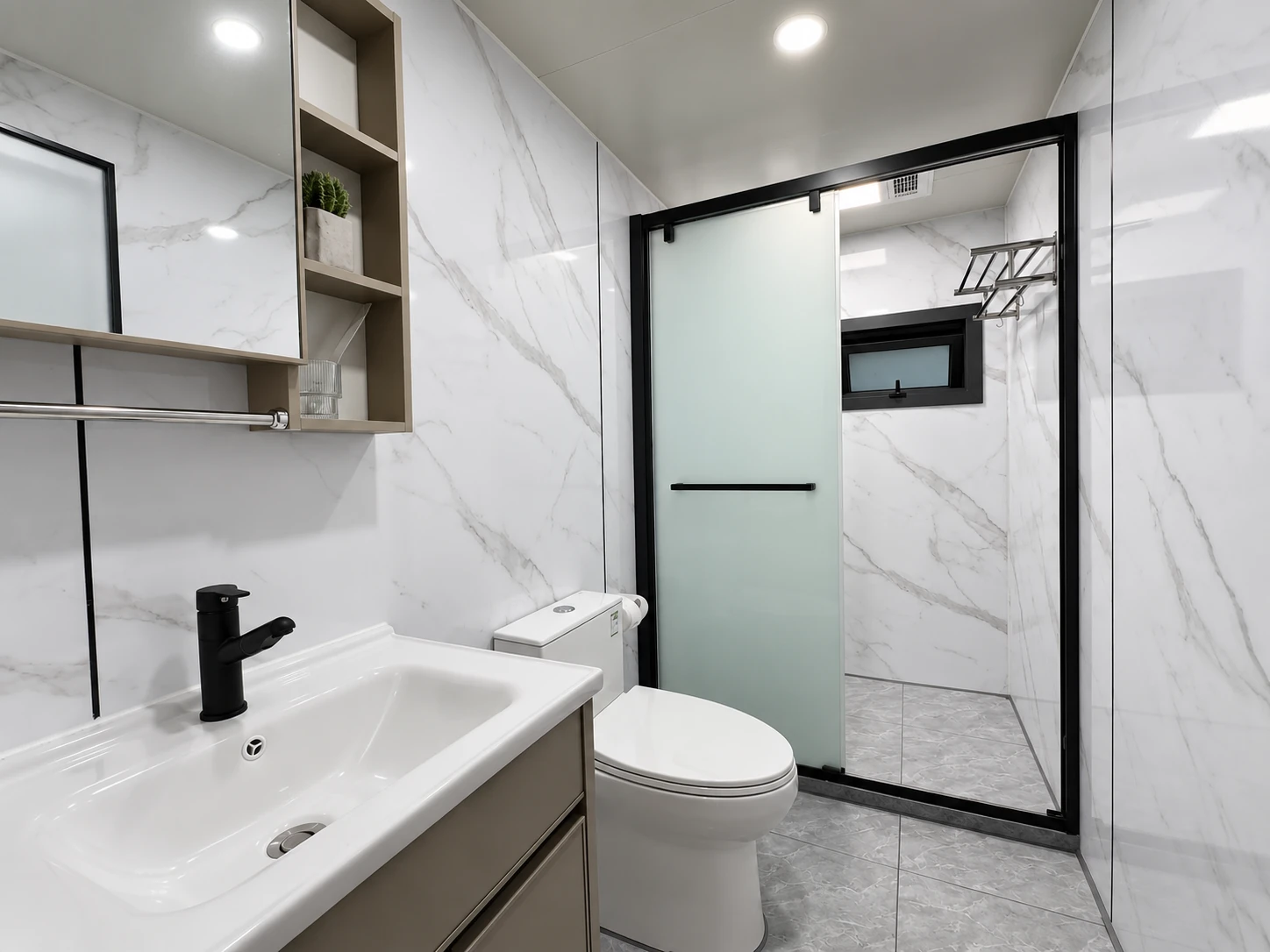

40ft expandable house bathroom visualisation showing a washbasin, toilet and shower enclosure
Bathroom visualisation Design reference showing a shower, toilet and washbasin.
Model and building details

40ft double-wing accommodation

This 40ft model expands into a wider living space with two, three or four bedrooms, plus living, kitchen and bathroom areas. Select the room plan and fit-out around the intended occupants and site.

Expanded and folded size
Expanded: 11800 × 6220 × 2480 mm. Folded: 11800 × 2200 × 2480 mm. Listed internal height: 2240 mm; reference weight: 5600 kg.
Room and terrace options
Two-, three- and four-bedroom plans include living, kitchen and bathroom zones. An optional terrace variant follows its selected drawing and supply scope.
Material and finish choices
Discuss EPS, rock-wool or PU panels, decorative exterior metal finishes, interior panels, doors, windows and PVC or SPC flooring for the selected package.

Procurement questions

Before you request a quotation

What window sizes are listed for the 40ft model?

The reference lists eight 930 × 930 mm windows and one 500 × 500 mm window. Confirm sizes, glazing, opening direction and positions with the selected room plan.

Is the bathroom package optional?

The bathroom package is an option. Confirm the shower enclosure, sanitary fixtures, fittings and water and drainage connections in the quotation.

Does the unit price include delivery and installation?

Taxes, installation, freight, site crane fees and other items not listed in the quotation are excluded from the unit price. Confirm each responsibility and cost separately.

Are the 40ft dimensions used for every model?

No. These dimensions apply to this 40ft model. Other sizes and configurations have their own expanded, folded and internal dimensions.

Are the interior images delivered-project photographs?

The living and bathroom images shown here are interior visualisations. The included finishes, equipment and fittings are confirmed in the selected configuration and quotation.

Can the dimensions and layout be customised?

Requirements can be reviewed. The final dimensions and room arrangement must be coordinated with the structure, transport configuration and selected model.

Can electrical fittings be supplied for different markets?

Yes, destination-specific wiring, switches and sockets can be specified, including Australian, US or European requirements where applicable. Product configuration alone does not imply approval of the complete building in every location.

How are freight and delivery costs confirmed?

Send the project country, destination port or delivery location, quantity and selected configuration. Ask for building supply, shipment and site costs to be itemised. The programme depends on drawing approval, production, shipping and site readiness.

Which project documents should we review?

Share the destination, intended use and any required documents or standards. Review model drawings, assembly information and the supporting documents available for the selected package before ordering. Availability and local acceptance must be confirmed for that configuration.

Project enquiry

Tell us what you need

Send the project location, intended use and estimated quantity. Add available drawings so we can review the suitable configuration and supply scope.

What to include in your project brief

Include in your project brief

  • Preferred model, building use and quantity
  • Country, site access and available opening space
  • Room plan, kitchen/bathroom and electrical requirements
  • Destination port or delivery location, required date and project standards

Use the form to describe your expandable container house requirements. A target delivery date helps planning; it is not confirmed until the supply programme is agreed.
